Products

DESCRIPTION

Basic Info.

Model NO.	SLD30
Seats	≤5
Horsepower	50HP
Tire Certification	ECE, GCC, ISO, DOT
Tire Design	Radial
Dumping Type	Front Lifting Style
Condition	New
Over Dimension	3650X2250X1800mm
Rated Power	37kw
Optional 2	AC
Optional 3	Perkins Engine or Isuzu Engine
Optional 1	Self-Load Bucket or Turning Bucket (180°)
Bucket Capacity	1.5m3
Engine Model	4dw91-45
Operating Weight	1850kg
Rated Loading Weight	3000kg
Transport Package	Nude 1X20gp Can Be Pushed Into 1 Unit
Specification	CE/SGS
Trademark	Sion
Origin	Luoyang, China
HS Code	84295900
Production Capacity	600 Unit/Month

Product Description

Product Description

As a lowvolume, shortdistance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on.

Features:

front end dumping truck
Loading weight:3000kgs

Bucket capacity:1.5m3
Engine:Deutz engine optional

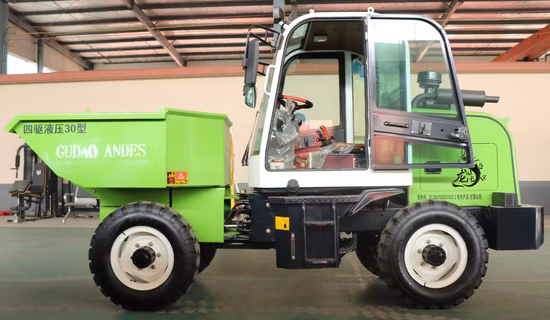

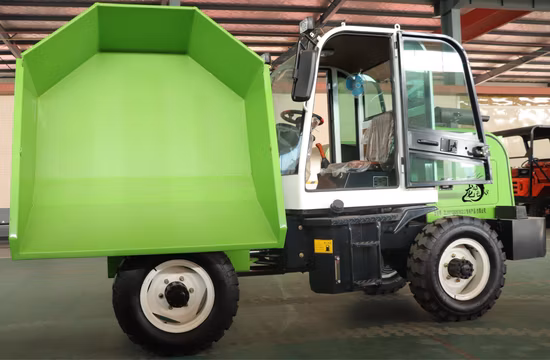

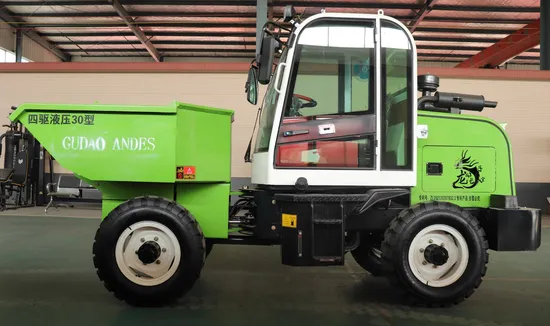

Site Dumper SLD30 Technical Specifications
Dumper Model	SLD30
Engine details	Model	4DW91-45
	Engine Type	In-line, water-cooled, 4 cylinders, diesel engine
	Rated Power	37kw
	Rated Speed	2200r/min
Hydraulic	Tipping and steering
Bucket	Bucket Capacity	1.5m³
	Rated Loading Weight	3000kg
	Operating Weight	1850kg
Dimensions	Overall Length	3650mm
	Overall Height	2550mm
	Overall Width	1800mm
	Wheel Base	1360mm
	Tread	1960mm
	Minimum turn radius	4000mm
Tire	Front tire:12-16.5	Rear Tire:12-16.5
Drive Type	4*4 Wheel Drive
